Hot-dip galvanised malleable iron pipe couplings
Create stable pipe constructions of the highest quality at a reasonable price. Fast, effective and variable! Most of the pipe connectors are also type-tested by TÜV Rheinland.
Highly cost-effective – few tools – no welding – no special techniques! With a little manual dexterity, you can easily assemble your construction yourself and save on expensive tradesmen. All components are simply screwed together. E-stahl has been selling tube connectors on the European market for many years. Quality is E-stahl's top priority.
Our company has been certified by TÜV Rheinland according to ISO 9001 since 2007. Benefit from our decades of experience as a master workshop. Our product line consists of weldless pipe connectors, made of a proven and resilient malleable iron according to BS EN 1562:1997. The high quality standard during production is the basis for the reliable absorption of high static forces and the guarantee of stable connection nodes with a clean appearance and the best corrosion resistance thanks to the highly durable galvanisation (hot-dip galvanised according to BS EN ISO1461:1999). The reliable frictional connection and pull-off strength is guaranteed by the use of the highest quality self-tapping screws. Our pipe connectors are available in five sizes. The first three digits describe the connector type, the last two digits the pipe size, whereby the decimal place is omitted. For example, the following order number is used for the right-angle bend and a pipe to be used in 48.3 mm (corresponds to 1 1/2 inch trade description): 125-D48
.
pipe connector sizes | Nominal diameter |
|---|
For pipe outside diameter
A273/4"26,9 mmB341"33,7 mmC421 1/4"42,4 mmD481 1/2"48,3 mmE602"60,3 mm
How to contact us
We look forward to receiving your enquiry.As an alternative to our contact form, you can also send us an email to:
Notes on the contact form
Your name: We need your name so that we can address you.
Your message: Please let us know how we can help you. The more specific your enquiry, the more effectively we can respond to your request.
For price enquiries, we also need your postcode and delivery address for freight calculation.
- a pipe connector that can be adjusted in the usual pairwise application in an angle of 90 to 180 degrees (two pipe connectors can be seen in the photo) - it is not possible to divide the continuous pipe for an external pipe diameter of 26.9 mm Measure ‘A’: 53 mm Weight: approx. 0.20 kg Allen key required: 1/4’
- a pipe connector that can be adjusted in the usual pairwise use in an angle of 90 to 180 degrees (two pipe connectors can be seen in the photo) - it is not possible to divide the continuous tube - for an external tube diameter of 33.7 mm Measure ‘A’: 59 mm Weight: approx. 0.29 kg Allen key required: 1/4’
- a pipe connector that can be adjusted in the usual pairwise application in an angle of 90 to 180 degrees (two pipe connectors can be seen in the photo) - no division of the continuous pipe possible For a pipe with an external diameter of 42.4 mm Measure ‘A’: 73 mm Weight: approx. 0.44 kg Allen key required: 5/16’
- a pipe connector that can be adjusted in the usual paired use in an angle of 90 to 180 degrees (two pipe connectors can be seen in the photo) - no division of the continuous pipe possible For a pipe with an external diameter of 48.3 mm Measure ‘A’: 93 mm Weight: approx. 0.63 kg Allen key required: 5/16’
- a pipe connector that can be adjusted in the usual paired use in an angle of 90 to 180 degrees (two pipe connectors can be seen in the photo) - no division of the continuous pipe possible For a pipe with an external diameter of 60.3 mm Measure ‘A’: 110 mm Weight: approx. 0.97 kg Allen key required: 5/16’
Extension piece for connecting two pipes with the same diameter - is attached to the outside of the pipes - for a pipe outer diameter of 26.9 mm - Dimension ‘A’: 76 mm - Weight: approx. 0.25 kg - Required Allen key: 1/4’
- extension piece for connecting two tubes with the same diameter - is attached to the outside of the tubes - alternatively, the tube connector 150 can be used for a tube outer diameter of 33.7 mm Measure ‘A’: 90 mm Weight: approx. 0.42 kg Required Allen key: 1/4’
- Extension piece for connecting two tubes with the same diameter - Is attached to the outside of the tubes - Alternatively, the tube connector 150 can be used For a pipe outer diameter of 42.4 mm Measure ‘A’: 100 mm Weight: approx. 0.56 kg Allen key required: 5/16’
- Extension piece for connecting two pipes with the same diameter - Is attached to the outside of the pipes - Alternatively, the 150 pipe connector can be used For an external pipe diameter of 48.3 mm Measure ‘A’: 100 mm Weight: approx. 0.59 kg Allen key required: 5/16’
- Extension piece for connecting two tubes with the same diameter - Is attached to the outside of the tubes - Alternatively, the tube connector 150 can be used For an external pipe diameter of 60.3 mm Measure ‘A’: 120 mm Weight: approx. 0.96 kg Allen key required: 5/16’
- internal tube extension for connecting two tubes flush with the same diameter - as it is less resilient than tube connector 149, tube connector 150 may only be used with tubes with a wall thickness of 3.25 mm - e.g. for constructing shelves or coat rails for a tube outer diameter of 33.7 mm Measure ‘A’: 78 mm Measure ‘B’: 20 mm Weight: approx. 0.25 kg Allen key required: 1/4’
- internal tube extension for flush connection of two tubes with the same diameter - as it is less resilient than tube connector 149, tube connector 150 may only be used with tubes with a wall thickness of 3.25 mm - e.g. for constructing shelves or coat rails For a tube outer diameter of 42.4 mm Measure ‘A’: 78 mm Measure ‘B’: 20 mm Weight: approx. 0.36 kg Allen key required: 5/16’
- internal extension for connecting two tubes with the same diameter flush to one another - as it is less resilient than the tube connector 149, the tube connector 150 may only be used with tubes with a wall thickness of 3.25 mm - e.g. for constructing shelves or coat rails For a tube outer diameter of 48.3 mm Weight: approx. 0.49 kg Allen key required: 5/16’
Attention! To achieve sufficient stability, you should not build a construction exclusively with articulated connectors! for a tube outer diameter of 33.7 mm Measure ‘B’: 90 mm Measure ‘C’: 127 mm Measure ‘D’: 89 mm Measure ‘E’: 80 mm Weight: approx. 0.88 kg Required Allen key: 1/4’

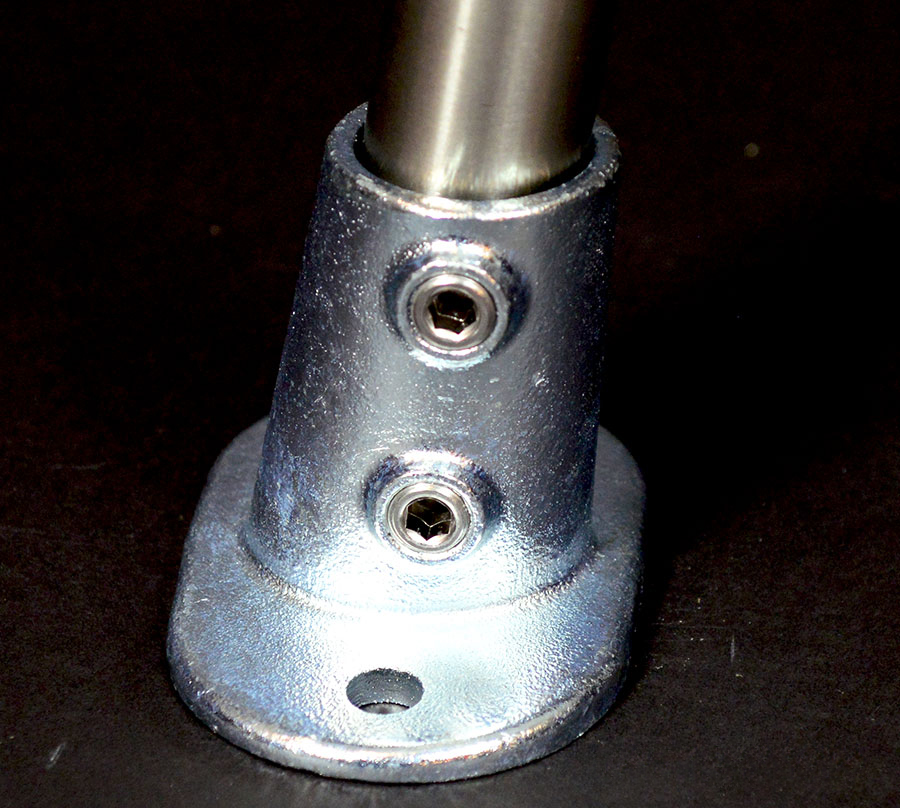

- for attaching pipes, e.g. to walls - large boreholes ensure mechanical or chemical anchoring Attention! To obtain sufficient stability, you should not build a construction exclusively with articulated connectors! For a pipe outer diameter of 42.4 mm Measure ‘B’: 98 mm Measure ‘C’: 140 mm Measure ‘D’: 101 mm Measure ‘E’: 90 mm Weight: approx. 1.05 kg Allen key required: 5/16’
- for attaching pipes, e.g. to walls - large boreholes ensure mechanical or chemical anchoring Attention! To obtain sufficient stability, you should not build a construction exclusively with articulated connectors! For a pipe outer diameter of 48.3 mm Measure ‘B’: 99 mm Measure ‘C’: 153 mm Measure ‘D’: 113 mm Measure ‘E’: 96 mm Weight: approx. 1.35 kg Allen key required: 5/16’
- T-connector can be tilted at an angle of 0 - 11 degrees - often used for struts - no division of the continuous pipe possible for an external pipe diameter of 33.7 mm Measure ‘A’: 46 mm Weight: approx. 0.38 kg Required Allen key: 1/4’
- T-connector can be tilted at an angle of 0 - 11 degrees - often used for struts - no division of the continuous pipe possible For a pipe outer diameter of 42.4 mm Measure ‘A’: 59 mm Weight: approx. 0.56 kg Required Allen key: 5/16’
- T-connector can be tilted at an angle of 0 - 11 degrees - often used for struts - no division of the continuous pipe possible For a pipe outer diameter of 48.3 mm Measure ‘A’: 68 mm Weight: approx. 0.77 kg Required Allen key: 5/16’

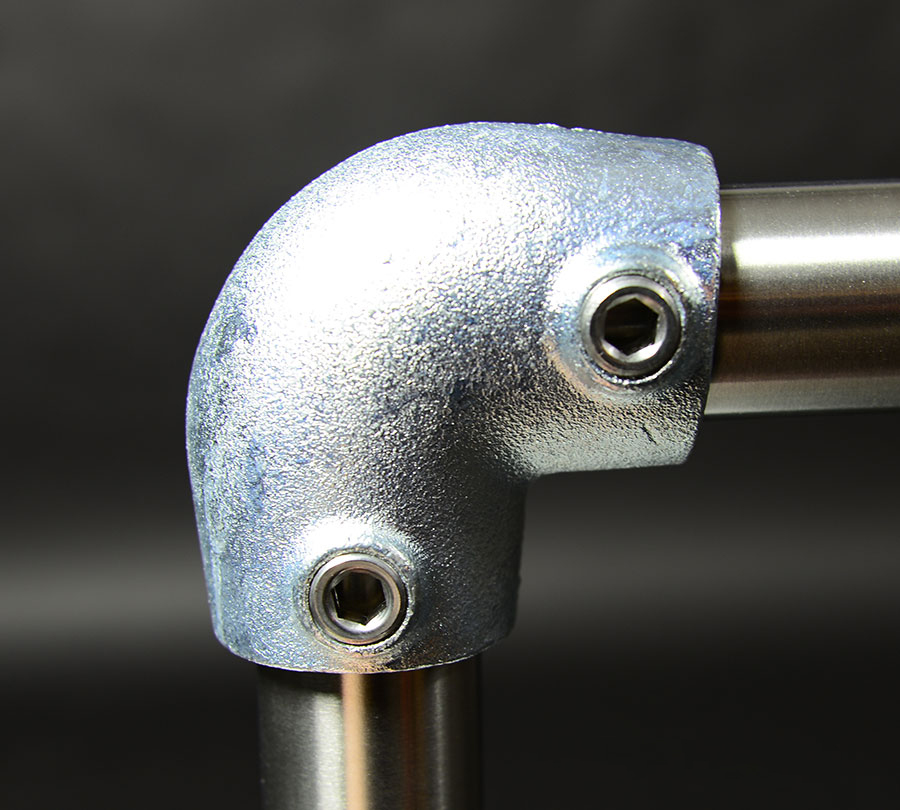

- elbow with 0 to 11 degree angle of inclination per outlet - used for example for stair railings for an external pipe diameter of 33.7 mm Measure ‘A’: 46 mm Weight: approx. 0.42 kg Required Allen key: 1/4’
- Elbow with 0 to 11 degree angle of inclination per outlet - Used for example for stair railings For a pipe outer diameter of 42.4 mm Measure ‘A’: 60 mm Weight: approx. 0.65 kg Required Allen key: 5/16’
- Elbow with 0 to 11 degree angle of inclination per outlet - Used for example for stair railings For a pipe outer diameter of 48.3 mm Measure ‘A’: 68 mm Weight: approx. 1.04 kg Required Allen key: 5/16’

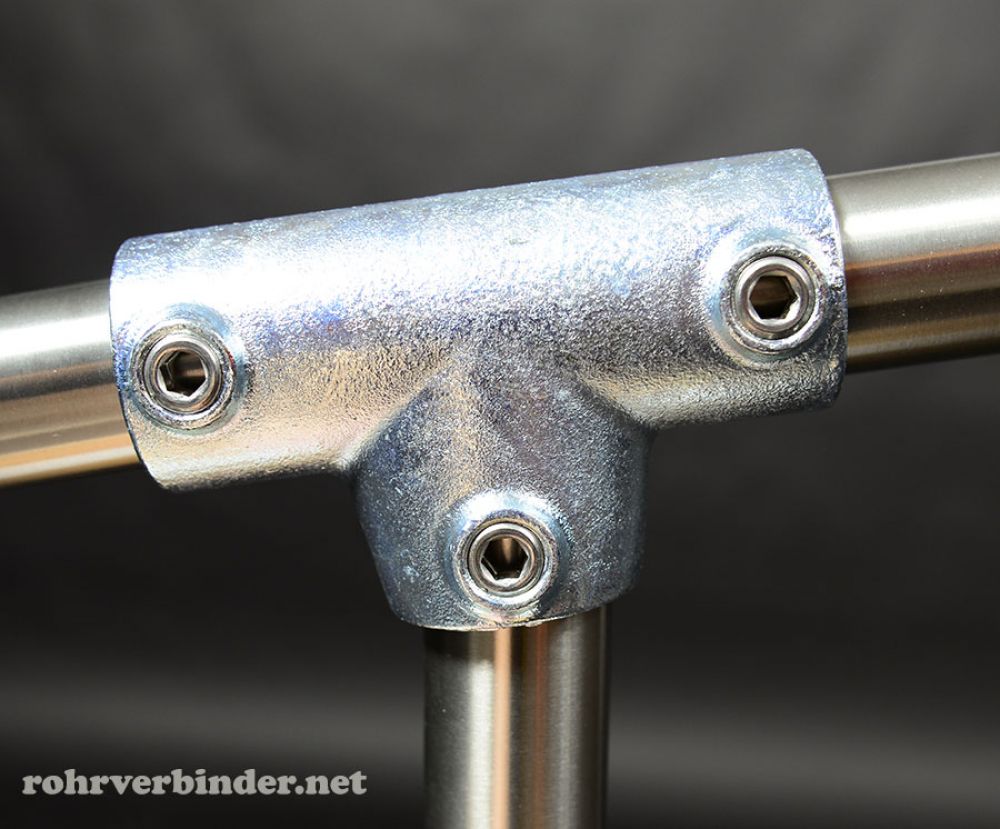

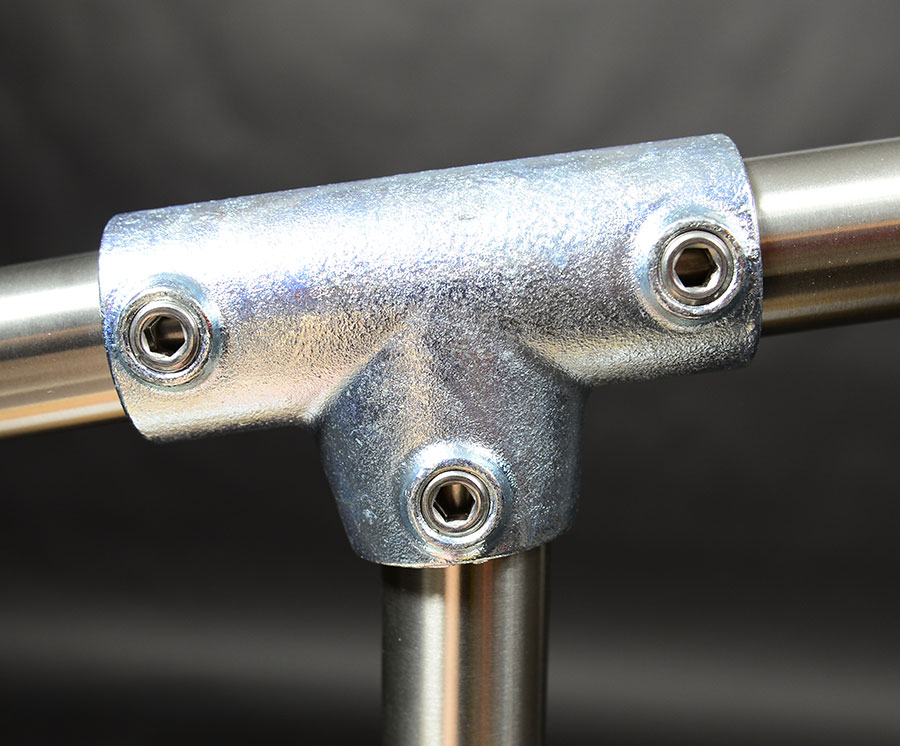

- T-connector with an angle of inclination of 0 - 11 degrees - often used for struts - allows the continuous pipe to be split - alternatively, pipe connector 153 can be used for a pipe external diameter of 33.7 mm Measure ‘A’: 46 mm Measure ‘B’: 104 mm Weight: approx. 0.59 kg Allen key required: 1/4’
- T-connector with an angle of inclination of 0 - 11 degrees - often used for struts - allows the continuous pipe to be split - alternatively, pipe connector 153 can be used For a tube outer diameter of 42.4 mm Measure ‘A’: 60 mm Measure ‘B’: 145 mm Weight: approx. 0.98 kg Allen key required: 5/16’
