- internal tube extension for flush connection of two tubes with the same diameter - as it is less resilient than tube connector 149, tube connector 150 may only be used with tubes with a wall thickness of 3.25 mm - e.g. for constructing shelves or coat rails For a tube outer diameter of 42.4 mm Measure ‘A’: 78 mm Measure ‘B’: 20 mm Weight: approx. 0.36 kg Allen key required: 5/16’
- for attaching pipes, e.g. to walls - large boreholes ensure mechanical or chemical anchoring Attention! To obtain sufficient stability, you should not build a construction exclusively with articulated connectors! For a pipe outer diameter of 42.4 mm Measure ‘B’: 98 mm Measure ‘C’: 140 mm Measure ‘D’: 101 mm Measure ‘E’: 90 mm Weight: approx. 1.05 kg Allen key required: 5/16’
- T-connector can be tilted at an angle of 0 - 11 degrees - often used for struts - no division of the continuous pipe possible For a pipe outer diameter of 42.4 mm Measure ‘A’: 59 mm Weight: approx. 0.56 kg Required Allen key: 5/16’
- Elbow with 0 to 11 degree angle of inclination per outlet - Used for example for stair railings For a pipe outer diameter of 42.4 mm Measure ‘A’: 60 mm Weight: approx. 0.65 kg Required Allen key: 5/16’
- T-connector with an angle of inclination of 0 - 11 degrees - often used for struts - allows the continuous pipe to be split - alternatively, pipe connector 153 can be used For a tube outer diameter of 42.4 mm Measure ‘A’: 60 mm Measure ‘B’: 145 mm Weight: approx. 0.98 kg Allen key required: 5/16’

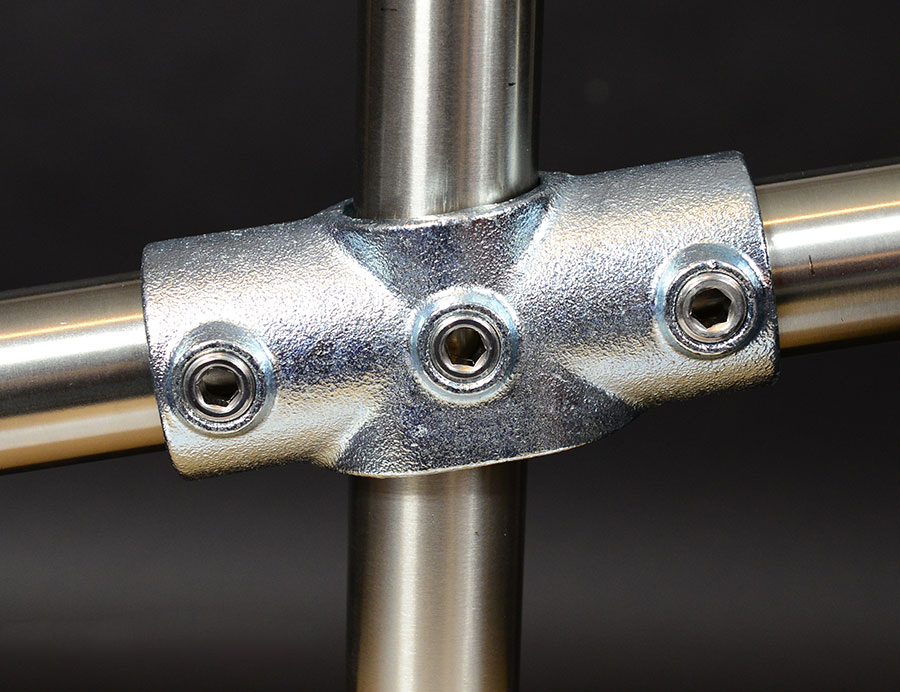

- Single-pass cross connector with two outlets where the continuous pipe can be adjusted at an angle of 0 to 11 degrees - Often used in conjunction with pipe connectors 153 or 155 - The continuous pipe cannot be divided For a pipe with an external diameter of 42.4 mm Dimension ‘A’: 140 mm Weight: approx. 0.82 kg Allen key required: 5/16’
- cross connector with 4 outlets and one passage for a 90° connection to a vertical post - for constructions with several posts, e.g. play structures - the division of the continuous tube is not possible For a tube with an external diameter of 42.4 mm Dimension ‘A’: 60 mm Weight: approx. 1.00 kg Allen key required: 5/16’
- open cross connector with two openings for connecting two pipes at a 90° angle - suitable for extensions and conversions of existing structures - no division of the continuous pipes possible - alternatively pipe connector 161 can be used For a pipe external diameter of 42.4 mm Measure ‘A’: 43.5 mm Weight: approx. 0.54 kg Allen key required: 5/16’
- two-way cross connector for connecting two tubes at a 90° angle - no division of the continuous tubes possible - often used for railing constructions, for example - alternatively, tube connector 160 can be used For a pipe outer diameter of 42.4 mm Measure ‘A’: 46 mm Measure ‘B’: 49.5 mm Weight: approx. 0.49 kg Allen key required: 5/16’
- Connector combining T-connector and cross-connector with two passages and one outlet - No division of the continuous tubes possible - Used for shelf constructions, for example For a pipe external diameter of 42.4 mm Measure ‘A’: 60 mm Measure ‘B’: 49 mm Weight: approx. 0.64 kg Allen key required: 5/16’
- two 180° adjustable joint connectors with two outlets and one passage - consists of 2 x 173F and 1 x 167M, riveted together for maximum stability - no division of the continuous pipe possible Attention! To obtain sufficient stability, you should not build a construction exclusively with these articulated connectors! For a pipe outer diameter of 42.4 mm Dimension ‘A’: 228 mm Weight: approx. 1.40 kg Required Allen key: 5/16’
- Pivot eye that can be used with the 173F pipe connector as part of the 167 pipe connector or for attaching wooden or plastic plates, for example - No division of the continuous pipe possible Attention! To achieve sufficient stability, you should not build a construction exclusively with swivel joints! For a pipe with an external diameter of 42.4 mm Measure ‘B’: 95 mm Hole diameter: 10 mm Material thickness: 8 mm Weight: approx. 0.42 kg Allen key required: 5/16
- 90° corner joint connector, can be adjusted two times by 180°, with two outlets and one passage - consists of 2 x 173F and 1 x 168M, which are riveted together to ensure maximum stability - no division of the continuous pipe possible Attention! To obtain sufficient stability, you should not build a construction exclusively with hinged connectors! For a pipe outer diameter of 42.4 mm Dimension ‘A’: 117 mm Weight: approx. 1.40 kg Required Allen key: 5/16’
- Joint eye at a 90° angle that can be used with the 173F pipe connector as part of the 168 pipe connector or for attaching wooden or plastic plates, for example - No division of the continuous pipe possible Attention! To achieve sufficient stability, you should not build a construction exclusively with joint connectors! For a pipe with an external diameter of 42.4 mm Dimension ‘A’: 48 mm Weight: approx. 0.41 kg Allen key required: 5/16’
- swivel foot for attaching pipes, e.g. to walls - consists of the pipe connectors 169M and 173F, which are riveted together to ensure maximum stability - large holes ensure mechanical anchoring Attention! To achieve sufficient stability, you should not build a construction exclusively with swivel connectors! For a tube with an external diameter of 42.4 mm Measure ‘A’: 69 mm Measure ‘B’: 112 mm Measure ‘C’: 85 mm Measure ‘D’: 98 mm Weight: approx. 0.86 kg Allen key required: 5/16’
- pipe connector for mounting a grid on one side of a pipe - can also be used to mount other building materials - pipe connector 171 is suitable for mounting a grid on both sides of a pipe - it is not possible to divide the continuous pipe - this pipe connector is made of steel (not malleable iron) For a pipe with an external diameter of 42.4 mm Measure ‘A’: 60-70 mm Measure ‘B’: 34-44 mm Weight: approx. 0.08 kg
- pipe connector for mounting a grid on one side of a pipe - can also be used to mount other building materials - pipe connector 171 is suitable for mounting a grid on both sides of a pipe - it is not possible to divide the continuous pipe - this pipe connector is made of steel (not malleable iron) For a pipe with an external diameter of 42.4 mm Measure ‘A’: 60-70 mm Measure ‘B’: 34-44 mm Weight: approx. 0.08 kg
- simple joint piece, adjustable through 180°, with one inlet and one outlet - consists of the 173M and 173F pipe connectors, which are riveted together to ensure maximum stability - no division of the continuous pipe possible Attention! To achieve sufficient stability, a construction should not be built exclusively with articulated connectors! For a tube outer diameter of 42.4 mm Measure ‘A’: 69 mm Measure ‘B’: 117 mm Weight: approx. 0.83 kg
- Joint holder that can be connected to various tube connectors (hinge eyes) (167M, 168M, 169M, 173M) - for flexible tube constructions Attention! To achieve sufficient stability, you should not build a construction exclusively with joint connectors! Hole size of the strap 11 mm For a pipe with an external diameter of 42.4 mm Dimension ‘A’: 69 mm Weight: approx. 0.47 kg
- swivel eye is part of the 173 pipe connector and can be used, for example, to attach wooden or plastic panels - no division of the continuous pipe possible Attention! To achieve sufficient stability, you should not build a construction exclusively with swivel joints! Hole size of the strap 11 mm For a pipe with an external diameter of 42.4 mm Measure ‘B’: 48 mm Weight: approx. 0.32 kg

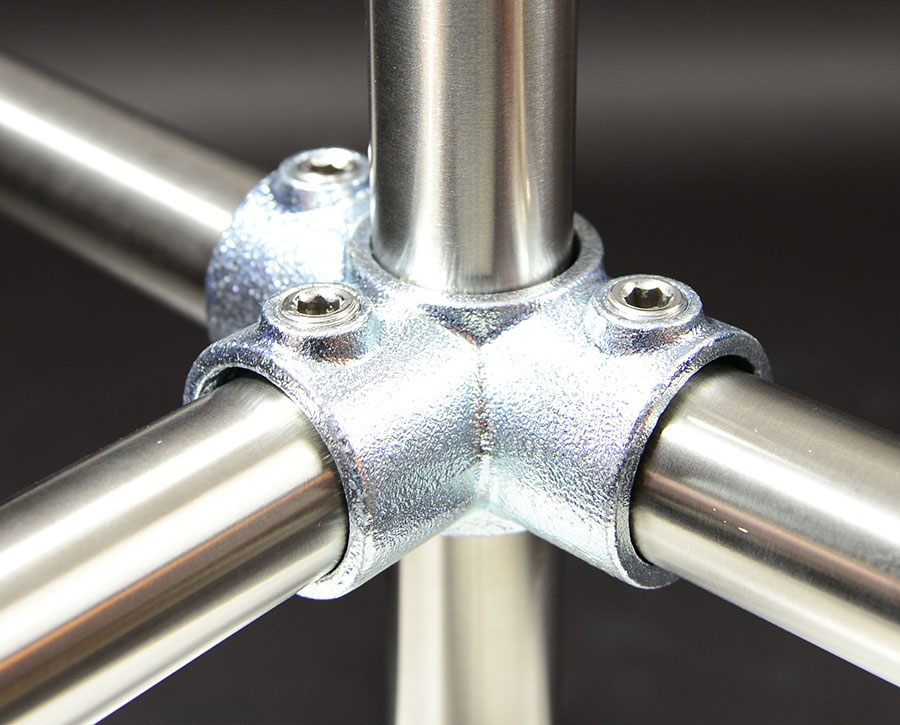

- Pipe connector with one inlet and three outlets, each at a 90° angle to the through pipe - Often used in the construction of shelves - No division of the through pipe possible For a pipe with an external diameter of 42.4 mm Measure ‘A’: 60 mm Measure ‘B’: 120 mm Weight: approx. 0.79 kg

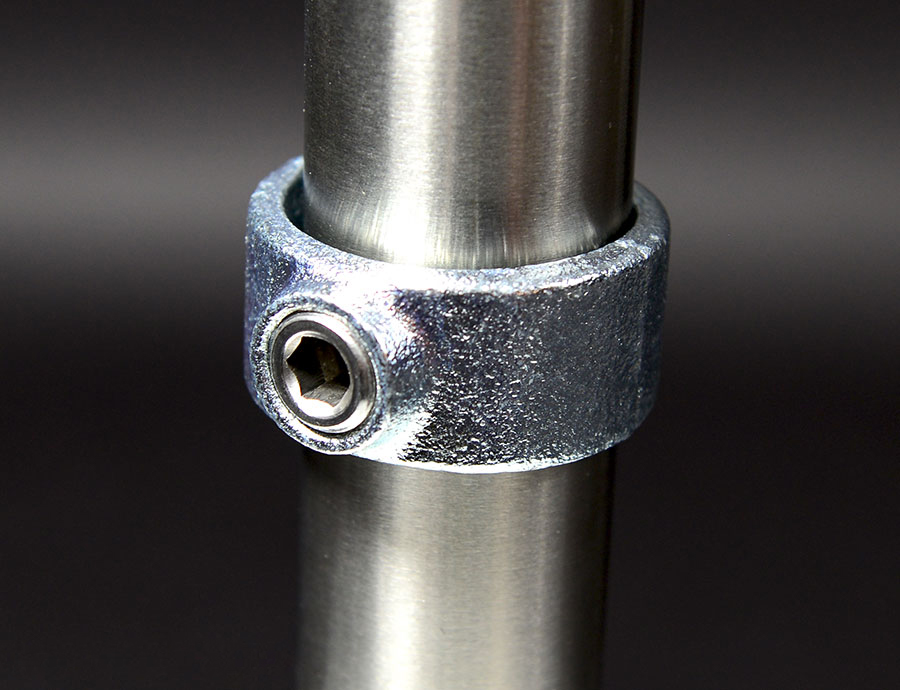

- Stellring zur Sicherung nicht befestigter Rohrverbinder wie z.B. Torschanieren ( 138 / 140 ) und als zusätzliche senkrechte Abstützung - keine Stückelung des durchlaufenden Rohrs möglich Für einen Rohraußendurchmesser von 42,4 mm Maß "A": 25 mm Gewicht: ca. 0,15 kg
for a pipe outer diameter of 42.4 mm Measure ‘A’ = 39 mm Measure ‘B’ = 25 mm Weight: approx. 0.22 kg Allen key required: 5/16’
for an external pipe diameter of 42.4 mm Measure ‘A’ = 95 mm Measure ‘B’ = 130 mm Weight: approx. 0.41 kg Allen key required: 5/16’
