1 pair of loading ramps with edge, length 3000 mm
€684.08
Available, delivery time: 3-4 weeks
Product information "1 pair of loading ramps with edge, length 3000 mm"
Length 3000 mm
Inner width: 155 mm
Outer width: 246 mm
Ramp height: 45 mm
Total height: 100 mm
Weight per pair: approx. 24 kg
Load capacity per pair with a centre distance of
* 0 mm: 419 kg
* 500 mm: 503 kg
* 1000 mm: 628 kg

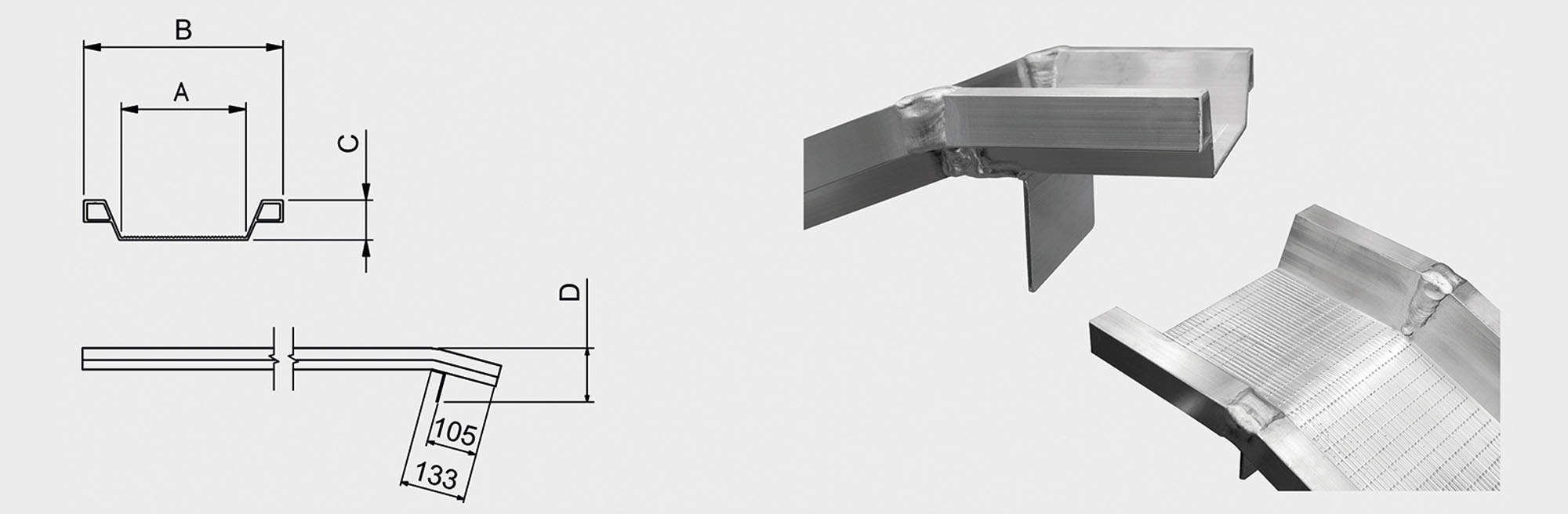

The ramp height indicates the height of the ramp including the side edge, whereas the total height also includes the upper end profile (see sketch - value A: inner width, value B: outer width, value C: ramp height, value D: total height).
The ramp is attached by means of a welded aluminium angle (see picture) that can be hooked between the tail lift and the floor of a Trailer.
